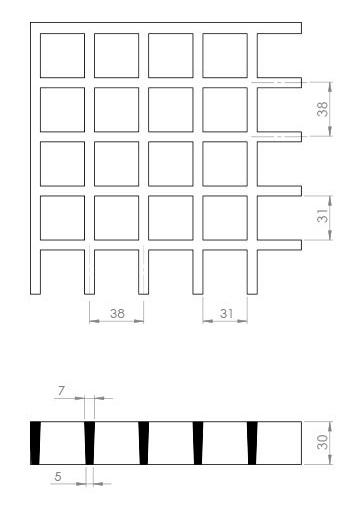

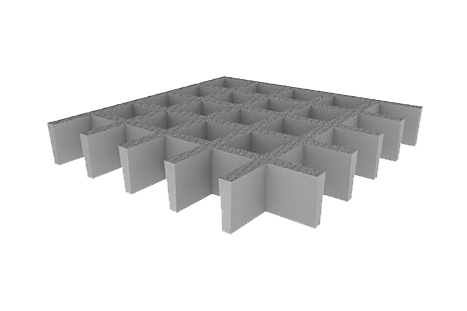

38x38 by 30mm Grating

38x38 by 30mm Grating
Plate Size 2026 x 1000mm
Fire Resistance
Anti-slip surface R13
Weight 14,6 kg/m2
Finish: Gritted
Colour: Grey
68% open surface

TABLE WITH DEFORMATION VALUES IN MM
Support spacing (mm Uniformly distributed load (Kg/m2) Max. permissible load Kg/m2 Breaking load Kg/m2
100 150 200 250 500 750 1000
200 0,0 0,0 0,0 0,0 0,0 0,0 0,0 26944 107814
300 0,0 0,0 0,0 0,0 0,1 0,1 0,1 7974 31936
400 0,0 0,1 0,1 0,1 0,2 0,3 0,4 3356 13465
500 0,1 0,2 0,2 0,3 0,5 0,7 1,0 1712 6888
600 0,2 0,3 0,4 0,5 1,0 1,5 - 985 3980
700 0,4 0,6 0,8 1,0 1,9 - - 616 2502
800 0,7 1,0 1,4 1,7 - - - 408 1672
900 1,2 1,7 2,2 2,7 - - - 283 1170
1000 1,8 2,5 3,3 - - - - 203 849
1100 2,6 - - - - - - 149 635
1200 3,7 - - - - - - 112 486
